DF3500

DOUBLE-FLEX:
"TABLE TOP" Double-Flex chains rotate on two planes, making it ideal for running in multi-directional applications. It's design allows maximum flexibility, allowing it to travel around corners or obstacles. For more information about DOUBLE-FLEX call us at 800-982-1183.
ACI :
Specifications

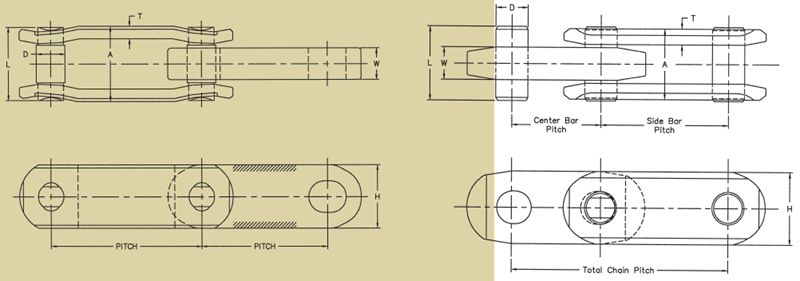

Drawing

Dimensions

Pitch

2.500
3.000

Overall Chain Width (A)

1.50

Inside Link Chain Width (W)

0.63

Link Plate (T)

0.250

Link Plate (H)

1.25

Pin (D)

0.57

Pin (L)

1.46

Max. Allowable Work Load

4,000 lb

Avg. Tensile Strength

33,000 lb

Min. Flex Radius

20.00

Approx. Weight

3.3 lb/ft
