DF3498

DOUBLE-FLEX:
"TABLE TOP" Double-Flex chains rotate on two planes, making it ideal for running in multi-directional applications. It's design allows maximum flexibility, allowing it to travel around corners or obstacles. For more information about DOUBLE-FLEX call us at 800-982-1183.
ACI :

Specifications

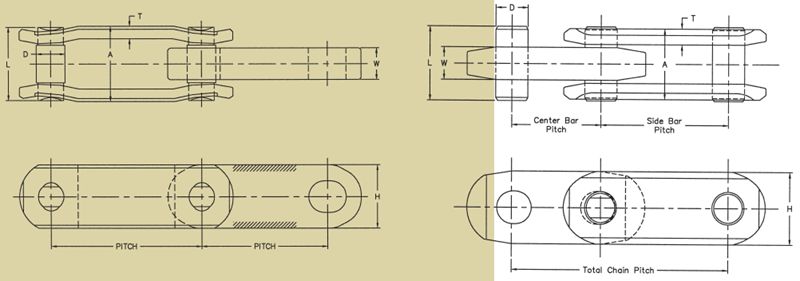

Drawing

Pitch

1.750
2.500

Overall Chain Width (A)

1.45

Inside Link Chain Width (W)

0.64

Link Plate (T)

0.310

Link Plate (H)

1.40

Pin (D)

0.63

Pin (L)

1.45

Max. Allowable Work Load

4,000 lb

Avg. Tensile Strength

38,000 lb

Min. Flex Radius

18.00

Approx. Weight

3.9 lb/ft
